Female compression fittings provide a straightforward, reliable method for connecting pipes and tubing. They do away with the need for solder or welded joints. This article explores the function of female compression fittings, showing how the compression nut and ferrule produce a tight seal. It also explains their importance in both plumbing and HVAC applications.
Max Adaptor
Choosing high-quality pipe fittings can greatly limit energy losses. This also helps stop refrigerant or water leaks, which can damage the environment. HVAC systems, which include components like compressors, condensers, expansion valves, and evaporators, rely on robust connections. Selecting the appropriate female compression fitting and compatible materials—such as brass, copper, stainless steel, PVC, or PEX—is critical for long-term system performance.
In plumbing, PEX or PVC with compression fittings are frequently used for their ease of service and low heat exposure. By contrast, refrigeration lines require fittings that can withstand thermal fatigue and maintain a seal across a wide temperature range. InstallationPartsSupply.com and its product lines support these needs, carrying common sizes and parts such as ferrules and compression nuts.
Key Takeaways
- This female compression fitting style uses a ferrule and compression nut to seal without soldering.
- Selecting the right material—brass, copper, stainless, PVC, or PEX—reduces the risk of corrosion and failure.
- Proper fittings reduce energy loss and limit refrigerant or water leaks in HVAC and plumbing systems.
- Fitting guide materials and suppliers like InstallationPartsSupply.com support part selection.
- Examine ferrules and tighten per manufacturer torque to help create a long-lasting seal.
How Compression Fittings Work In HVAC And Plumbing Applications
Compression fittings join pipes and tubing without solder or welding. They are commonly used on copper, PEX, PVC, and stainless lines where heat or flame is undesirable. Many contractors obtain parts from Installation Parts Supply to improve consistent quality and fit.
Understanding How Compression Fittings Work
A compression fitting uses a nut and a ferrule olive pressed against the pipe by the fitting body. When the nut is tightened, it compresses the brass ferrule or sleeve, which grips the outer pipe and forms a seal. This design answers the common question of what is a compression fitting by showing how mechanical compression creates a leak-tight joint.
How HVAC Fittings Differ From Plumbing Fittings
HVAC fittings must handle refrigerants, wider temperature swings, and thermal fatigue. Plumbing fittings usually handle potable water, wastewater, and pressure from building systems. For HVAC and plumbing fitting selection, selection depends on media, service temperature, and pressure ratings.
HVAC setups including split systems, VRF, and rooftop units often use copper fittings and brazed joints for refrigerant lines. Plumbing systems frequently rely on PEX compression and PVC for drains, where solvent welds or crimp systems are common.
Compression Fitting Materials: Brass, Copper, Stainless Steel, PVC, And PEX
Copper fittings deliver excellent thermal conductivity and corrosion resistance. Brass parts such as ferrules offer resistance to wear and are common in many compression fittings. Stainless steel is often chosen for corrosive or high-pressure environments.
PEX compression fittings are commonly used for domestic water lines because it handles freeze-thaw cycles and is flexible. PVC is still a low-cost option for drains and certain chilled-water circuits when pressure is low.
| Component Material | Primary Use | Benefits | Drawbacks |
|---|---|---|---|
| Copper Fittings | Refrigerant lines, potable water | Strong conductivity with durable performance | Higher price and possible denting or damage |
| Brass Components | Compression nuts, fitting bodies, and ferrules | Good machinability, corrosion resistance | Possible galvanic issues with dissimilar metals |
| Stainless steel | High-pressure or corrosive systems | Excellent durability with corrosion resistance | More expensive and harder to machine |
| PEX | Residential hot and cold water | Flexible and resistant to freeze-thaw cycles | Requires compatible PEX compression fittings |
| PVC Material | Drain, low-pressure chilled water | Low-cost and simple to install | Not for high temperature or pressure |
Fitting Selection, Energy Efficiency, And Leak Prevention
Matching the fitting correctly limits leak risk and maintains system pressure. Across cooling circuits, a poor joint can release refrigerant and lower efficiency. Leak-tight joints and material compatibility cut maintenance and lower energy waste.
Matching the right ferrule type and matching copper fittings or PEX compression hardware reduces the chance of galvanic corrosion and thermal fatigue. This method extends service life and keeps HVAC and plumbing systems running efficiently.

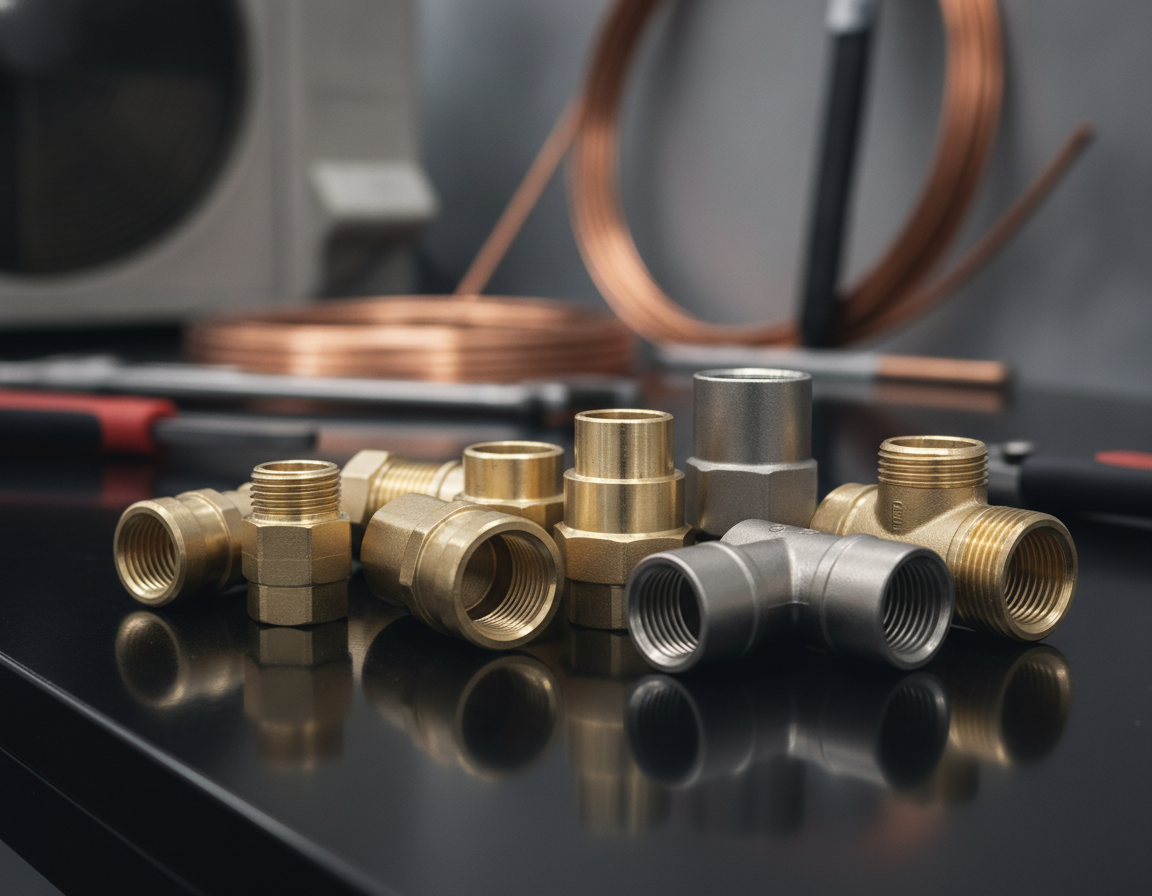

Female Compression Fittings
A female compression fitting secures a pipe or tube end when a nut compresses the ferrule olive against the fitting body. This fitting creates tight connections without soldering, making it common in plumbing and HVAC. Adapters and unions support quick disassembly for service or instrument changes.
Common Configurations And Definition
A typical assembly includes a female compression nut, a ferrule olive, and the fitting body. The nut connects to the fitting body and compresses the ferrule to grip the tube. Installers often use unions, straight fittings, or elbow bodies to adapt direction and access during maintenance.
Choosing Compatible Materials
Brass and copper are standard for refrigerant fittings and hot-water lines due to their ability to withstand thermal cycles and resist deformation. Stainless steel suits high-pressure or corrosive environments. PVC and PEX commonly serve condensate and domestic water runs, but they require proper inserts or specific ferrules for secure joints.
Where Female Compression Fittings Are Commonly Used
Across plumbing applications, female compression fittings link stops, valves, and supply lines without solder. Across HVAC service applications, technicians use them on refrigerant fittings between compressor, condenser, and evaporator where service access is critical. Instrumentation systems and gas lines commonly need compression parts for leak-tight, serviceable connections.
Comparison With Male Compression Fittings And Adapters
Female fittings are designed to accept a male end and form the receiving thread, while a 3 8 Male Compression Fitting provides that mating male component for tubing or ports. A 3/8 Valve Adapter allows technicians interface service valves and gauges to the system. Matching materials helps prevent galvanic corrosion and keeps joints reliable under pressure and thermal change.
| Assembly Part | Usual Material | Usual Application | Maintenance Note |
|---|---|---|---|
| Female compression nut | Machined brass | Supply lines and valve connections | Replace when rounded, cracked, or damaged |
| Compression ferrule | Brass and stainless options | Seals around copper, brass, or compatible PEX | Often should be replaced during service |
| Main fitting body | Brass, stainless steel | Refrigerant fittings, instrumentation | Match material to refrigerant and pressure rating |
| 3/8 Male Compression Fitting | Brass, copper | Mating for female ports, small-diameter lines | Confirm thread and seat match |
| 3/8 Valve Adapter | Brass construction | Service valves, gauges, and manifolds | Match seals to refrigerant fittings |
| Installation Parts Supply product line | Multiple materials | Source for matched kits and replacements | Buy compatible ferrules and nuts for system longevity |
Plumbing And HVAC Fitting Types, Sizes, And Related Adapters
This section explores the various fitting types, sizes, and adapters essential for plumbing and HVAC projects. Installers use couplings, elbows, unions, and adapters to manage line routing, component isolation, and service access. Selecting the proper parts significantly impacts system performance, including pressure rating, temperature limits, and reliability.
Compression couplings and unions allow the creation of removable joints for maintenance and testing. Couplings are best suited to straight connections, while compression unions are preferred for components that need to be disconnected without disrupting the line. For small-diameter applications, a 3/8 Compression Coupling is often used in instrumentation and refrigeration applications.
Adapters and elbows make it easier to handle tubing routing around obstacles and for connecting different types of fittings. A 3 8 Male Compression Fitting helps connect to a female port or adapter, facilitating the integration of service valves and gauges. Installation Parts Supply catalogs provide a wide range of these components, helping provide quick access on job sites.
Choosing the right size is critical, depending on the tube’s outside diameter and the ferrule and nut set. Check that the female compression fitting size matches the tube OD to prevent leaks. For 3/8″ applications, verify ferrule compatibility and torque specifications. Also check the system’s maximum pressure and temperature ratings before making a final selection.
Specialty parts such as the Max Adaptor and 3/8 Valve Adapter are made for connecting gauges, service ports, and small refrigerant lines. These parts help simplify the process of charging and diagnostics in HVAC systems. During HVAC diagnostics, a 3/8 Valve Adapter is commonly used to link manifold hoses to service valves on compact systems.
Selecting the material means balancing between durability and corrosion resistance. Stainless steel provides strong corrosion resistance and durability, making it suitable for harsh environments. Copper and brass suit refrigerant circuits and heat transfer lines due to their balance of machinability and corrosion protection. PVC and PEX are appropriate for low-pressure condensate and water lines but not for high-pressure refrigerant service.
The environmental impact of fittings is influenced by leak prevention and recyclability. Well-sealed metal fittings can lower refrigerant emissions and can be recycled at the end of their life. Choosing quality parts from dependable suppliers reduces failures and minimizes long-term environmental risk.
Below is a comparison to help choose between common options by application, pressure, temperature, and reusability.
| Connection Type | Typical Use | Usual Maximum Pressure | Typical Temperature Range | Reusability |
|---|---|---|---|---|
| Compression coupling in brass | Instrumentation, small water lines, refrigerant | Up to 3,000 psi depending on specification | Typical range from -65°F to 250°F | Limited reuse if the ferrule remains intact |
| Serviceable compression union | Serviceable joints, maintenance access | As high as 2,500 psi | Typical range from -65°F to 300°F | High; designed for disconnects |
| 3/8 compression connection | Instrumentation, refrigerant lines, and small plumbing runs | System dependent; confirm rating | Verify material specification for HVAC use | Moderate reuse depending on ferrule condition |
| Small male compression fitting | Adapter to service valves and gauges | Refrigerant-rated when made and specified correctly | Appropriate for typical HVAC temperature cycles | Reusable if inspected and intact |
| Max Adaptor brass/stainless | Special service coupling for gauges and valves | Designed for higher service-tool demands | Suitable for HVAC temperature cycles | Reusable and made for repeated service |
| PVC and PEX fittings | Condensate drains and low-pressure water service | Low, with no high-pressure refrigerant use | 32°F to 140°F typical | Reusable in some systems; limited life under UV |
Before ordering, check Installation Parts Supply or other reputable distributors for part numbers, material options, and pressure ratings. Make sure the chosen 3/8 Valve Adapter or Max Adaptor matches both the tubing OD and the service fitting type to avoid mismatches on site.
Best Practices For Installation And Maintenance
Good installation begins with clean, square pipe ends and the right parts. When working with HVAC refrigerant lines, use copper and brass. For condensate or chilled water, PVC or PEX is best. Always check manufacturer specs and ASME B31.5 to minimize energy loss and leaks.
Basic compression fitting installation steps
1. Cut and deburr the tube to a square face. 2. Next, slide the nut and ferrule onto the pipe in that order. 3. For soft plastic tubing, insert pipe inserts to keep the tube round before assembly. 4. Tighten by hand first the nut, then use the two-wrench technique to finish the joint.
Useful installation tools and methods
Use a two-wrench method to hold the fitting body and turn the nut to prevent tube twist. Follow torque guidance from the fitting maker or Installation Parts Supply when available. Many installers snug by hand, then add a limited number of wrench turns.
Using pipe inserts correctly
Pipe inserts are essential for soft plastic tubing like PEX or thin-wall PVC to prevent ovalization and ensure a leak-free seal. Do not install inserts in solid copper or thick-walled metal tubing, where inserts can interfere with proper ferrule compression.
Ferrule removal and common installation mistakes
Avoid under-tightening and over-tightening. Too little tightening can cause leaks; over-tightening deforms the ferrule and can make ferrule removal difficult. Ferrules are usually single-use; plan to replace them when disassembling a joint.
Ferrule removal steps
Before removal, shut off supply and relieve pressure. Hold the fitting body with one wrench while loosening the nut with a second. Remove the nut and slide out the ferrule. If the ferrule will not move, apply penetrating oil, use a ferrule puller, or carefully cut the ferrule off without nicking the pipe.
Installing a 3/8 Valve Adapter
For compact 3/8″ service connections, prepare the tubing the same way and follow the two-wrench technique. Many 3/8 Valve Adapter installation steps mirror larger fittings but require careful attention to torque guidance to avoid crushing the tube or the adapter threads.
Maintenance and inspection guidance
After bringing the system up to pressure, inspect joints for weeps and tighten slightly if needed. Schedule routine inspections for corrosion and thermal fatigue, especially on refrigerant circuits. Avoid installing compression connections where vibration will loosen them over time.
| Installation Step | Task | Helpful Tip |
|---|---|---|
| Prep Work | Square-cut, deburr, and clean the pipe | Choose a quality cutter and deburrer |
| Assembly | Slide nut, ferrule, then insert into fitting | Use pipe inserts on PEX/PVC to retain shape |
| Tightening | Hand-tighten, then use two wrenches | Follow torque guidance from manufacturer |
| Test | Pressurize the system and look for weeps | Watch for slow weeps; re-torque slightly if safe |
| Service | Check routinely and change ferrules when joints are opened | Keep spares from Installation Parts Supply for quick repairs |
Closing Notes
Choosing the right compression fitting is critical for plumbing and HVAC work. The type of material, whether brass, copper, stainless steel, PVC, or PEX, must fit the service type. That supports reliability and extends system life. Well-matched parts and sound installation help cut energy losses and refrigerant leaks, preserving performance and environmental health.
Compression fittings provide a leak-free, solder-free solution. They consist of a nut, ferrule, and body. To ensure a tight seal, follow these steps: square-cut and deburr the tubing, use the two-wrench technique, and replace ferrules when reused. These techniques help ensure long-lasting, leak-tight connections in various applications, from copper piping to instrumentation.
For job-specific needs, such as 3/8″ lines, 3/8 Compression Coupling, or 3/8 valve adapters, make sure you match size and pressure ratings to the task. High-quality components from reputable suppliers matter. An Installation Parts Supply guide can assist in finding compatible fittings and adapters. Regular maintenance and proper selection preserve system efficiency and compliance.
In closing, dedicating time to material selection and correct assembly is important. That helps create durable, leak-free connections. It helps provide optimal performance, fewer repairs, and less environmental harm.
